BIGTREETECH SKR V1.3 3D Printer Controller Board ARM 32 Bit Mainboard TMC2208 Compatible Smoothieboard Marlin 3d printer parts Details & Specification :

Item Specifications
Brand Name BIQU
Item Type Motherboard
Model Number BIGTREETECH SKR V1.3
Name BIGTREETECH SKR V1.3
Model Number 32 bit mainboard
Item Type 3D Motherboard
Support Driver TMC2208, TMC2130, LV8729, DRV8825, A4988 ST820 and so on

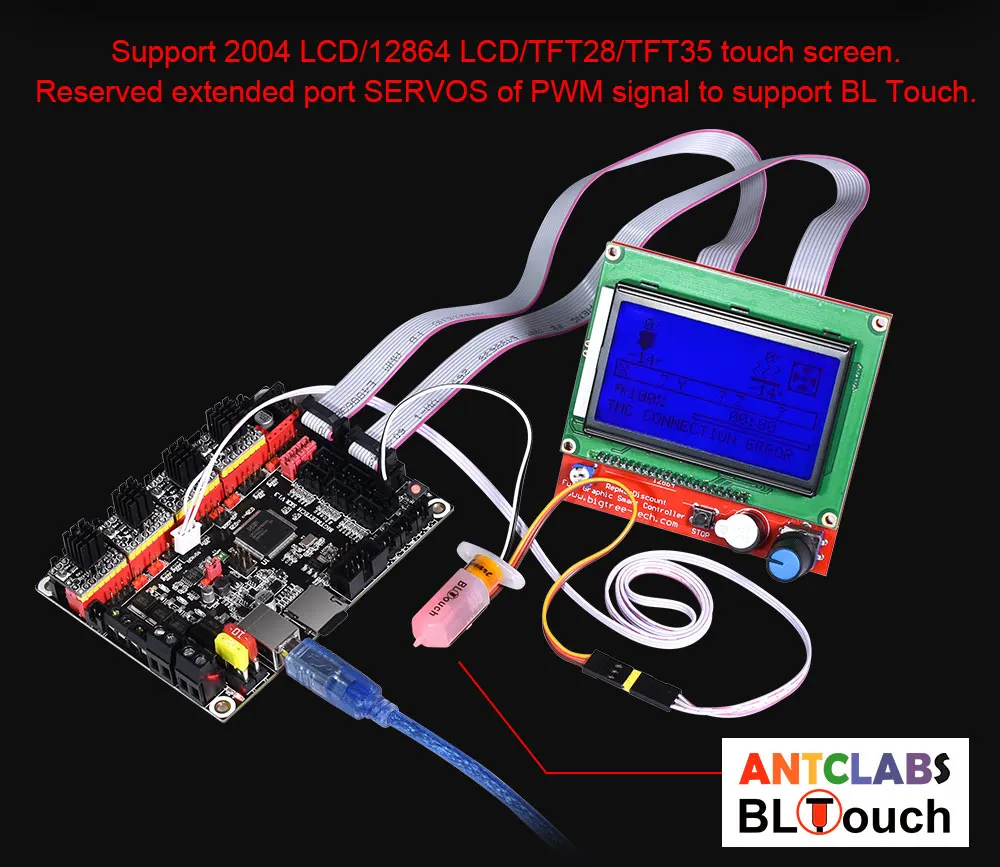

Support Display: TFT 2.8 TFT 3.5 TFT 3.2 LCD 12864 LCD 2004
Support machine structure XYZ, delta, kossel, Ultimaker, corexy
Microprocessor ARM cortex-M3 CPU
Input voltage DC12V-DC24V 5A-15A

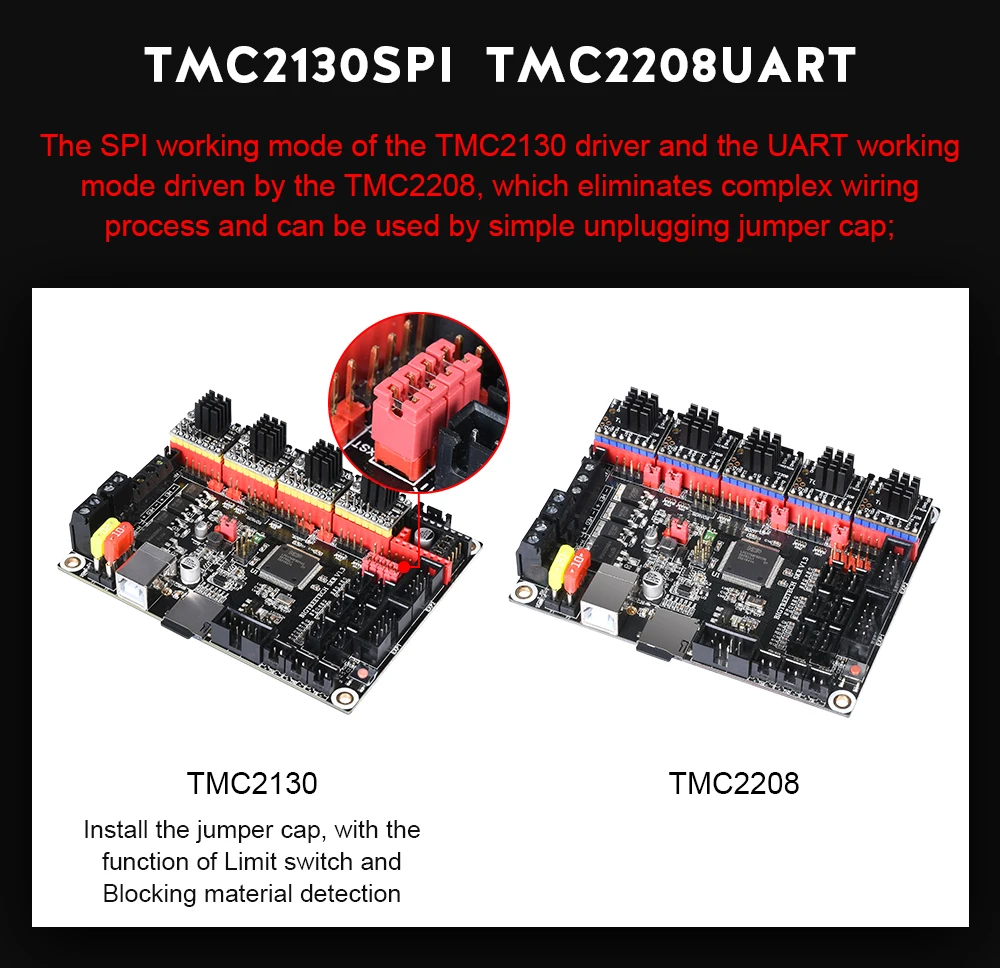

Driver working mode support TMC2130SPI, TMC2208UART Normal STEP/DIR mode
Temperature sensor interface TH0, TH1, TB, 3 channel 100K NTC (thermal resistance)
Support file format G-code
Recommended software Cura, Simplify3D, pronterface, Repetier-host, Makerware
Certificate CE
Driver version Both Chip on the top TMC2208 V2.1 TMC2130 V2.0



32 Bit SKR motherboard

Why choose this board ?

BIGTREETECH SKR V1.3 motherboard is the latest upgrade version based on SKR V1.1 of  ShenZhen BigTree Technology CO.,LTD. .

The team launched a cost-effective 3D for some problems in the motherboards on the market.The SKR main board , especially suitable for small and medium-sized printers.

Note  : We have a small SD card for each motherboard.File names cannot be changed in the SD card.



The more details motherboard infoabout Marlin 2.0 ,please check

 https://github.com/bigtreetech/BIGTREETECH-SKR-V1.3



How to link SKR V1.3 motherboard and use TMC2130 SPI mode, TMC2208 UART mode firmware modification tutorial in Marlin.

https://www.youtube.com/watch?v=oaXfXkPYHpw&feature=youtu.be



The SKR V1.3 motherbaord specification

https://www.dropbox.com/s/x3cgq7tqbhk2yfd/SKR%20V1.3-Instructions.pdf?dl=0



Note: When using smoothieware open source firmware, many functions on SKR V1.3, such as 2130SPI, 2208UART, LCD screen and so on, can not be used. Only Malin firmware can show all the functions of SKR V1.3.

https://github.com/bigtreetech/BIGTREETECH-SKR-V1.3/tree/master/firmware/smoothieware%2BTFT35



About TMC2130 driver :

DIY TMC2130 V3.0 option is not wired and requires you to solder yourself when using SPI Mode,otherwise ,the stepper motor is ordinary working model  Welding method: welding CFG4 to GND, CFG5 to VCC (Please add the TMC2130 wire together,if you need to use SPI model with the other board . However, no cable is needed to use SKR V1.3 motherboard, which only by welding the following positions. )

wire



If you want to use the SPI model conveniently,we suggestion you choose this kit ,4 PCS TMC2130 V3.0 SPI .

About TMC2208 UART driver :

  There have two verison choose about TMC2208 ATEP/DIR ,UARt model .TMC2208 UART for those looking for UART but not sure about soldering. They now offer v3 of the 2208 with the soldering done for you.Choose this kits you don't need to weld by yourself .
